DI-105
is
installed
to the top
and the bottom
of elevator
and is A,
B Double type
limit switch
that it detects
the location
of elevator
car¡¯ and if
elevator go
beyond the
restricted
area, it cuts
the elevator
power.
Features
¡¡ 1. Interlock contact
is open and closed by door
locking system.
¡¡ 2. Interlock maintains
locking location by a coupling
device of compressed spring
¡¡ 3. Interlock contact
is opened surely by locking
device of mechanical operating
device.
¡¡ 4. Before lifter operates,
interlock maintains door
locked location.
¡¡ 5. Safety contact
is protected by protecting
cover
¡¡ 6. When
platform door is opened
from the outside, locking
equipment can be raised
using special door key so
that it
¡¡¡¡ is easy to
release lock.
Standard
features
TECHNICAL
DATA
¡¡Contact
resistant value
Less
than 30m§Ù
¡¡Thrust
of contact point
Over
100gf/1 contact
¡¡Limit
temperature
88¡É
¡¡Rated
voltage
DC 200V
/ AC 230V
¡¡Rated
current
DC
2A / AC 2A
DIMENSION
¡¡Case
width
75mm
¡¡Case
depth
53mm
¡¡Case
height
51.65mm
¡¡Normal
roller stroke
14mm
¡¡Lever
arm length
70mm
Components

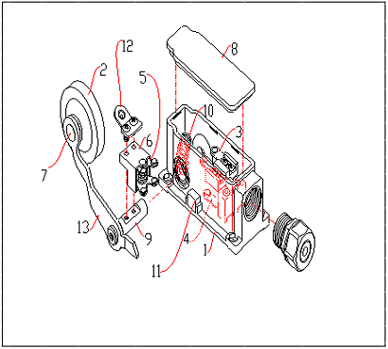

Please, refer to right side view as a system diagram, and individual component is as followings.
